Pipe Alignment Tools: Why the Right Equipment Makes All the Difference on Site

At Pipe Stands and Clamps, part of the SFE Group, we supply a comprehensive range of pipe alignment tools built for real site conditions — from oil and gas fabrication yards to infrastructure projects and shipbuilding facilities. This post breaks down what these tools do, why they matter, and what to look for when specifying them.

What Pipe Alignment Tools Actually Do

Pipe alignment tools hold pipes and joints in the correct position during fit-up and welding. That sounds straightforward, but the demands on site rarely are. Pipes shift under load, thermal movement affects tolerances, and working in confined or live environments adds another layer of difficulty.

The right pipe alignment tool eliminates guesswork. It holds the joint firmly, maintains the correct root gap, and prevents movement during the weld sequence. The result is a joint that meets specification first time — without rework, without delays, and without the cost of failed inspection.

Pipe Alignment Clamps: The Core of Every Fit-Up

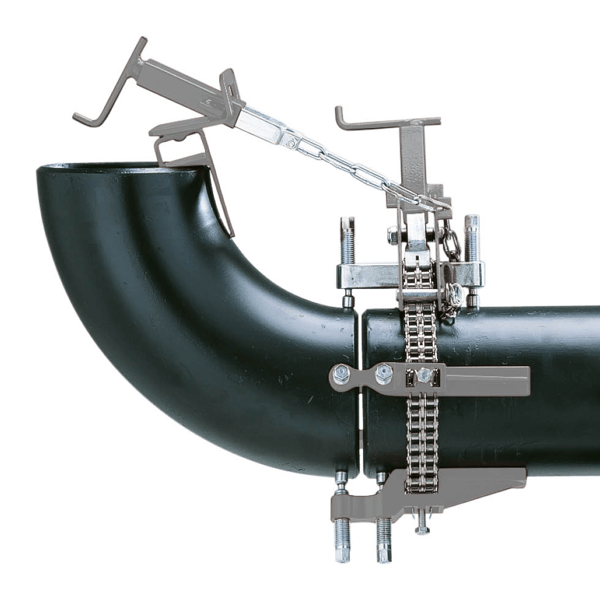

Pipe alignment clamps are the most frequently used tools in the pipe fabrication toolkit. At Pipe Stands and Clamps, we stock a wide selection — from rapid-fit external clamps for smaller bore work (1" to 12") right through to heavy-duty cage clamps capable of handling pipes up to 72" and beyond.

Each clamp type is suited to specific applications. Rapid-fit external clamps are ideal where speed matters and access is straightforward. Chain-type alignment clamps offer flexibility across a wide diameter range and perform well in both workshop and field environments. Cage clamps provide full circumferential fit-up for large bore pipework where absolute precision is non-negotiable.

All of our pipe alignment clamps are built for repeatability. Set-up is consistent, release is quick, and the clamps are compatible with most pipe stands, roller stands, and handling systems — so they integrate into your existing setup without complications.

Layout and Marking Tools: Precision Before the Clamp Goes On

Pipe alignment tools do not work in isolation. Before you clamp anything, you need accurate layout and marking — and that is where a well-specified set of layout alignment and marking tools earns its place.

Our range includes pipe wraps, pipe fitters squares, centering heads, protractors, radius markers, and pocket and torpedo levels. Each tool is designed to be practical in the field: lightweight, durable, and accurate enough to eliminate the kind of small errors that compound into costly problems further down the line.

What a Flange Square Does and Why It Belongs on Every Job

For anyone working with flanged pipe assemblies, the Flange Square is one of those tools that quietly prevents a significant amount of rework.

A Flange Square is a precision measuring tool used to confirm that a flange is sitting perfectly square to the pipe centreline. In flanged systems, even a small angular offset causes bolt-hole misalignment, gasket seating problems, and potential leaks under pressure. A Flange Square catches these issues at the layout stage — before any welding takes place and before the joint is committed.

Misaligned flanges in pressure systems can lead to gasket failure, leaks, and in critical applications, serious safety incidents. For fabricators and pipefitters working to tight tolerances in oil and gas, chemical processing, or water infrastructure, building the Flange Square into the standard workflow is not overcaution — it is simply good practice.

Our Flange Square is lightweight, accurate, and built to withstand daily site use across stainless steel, carbon steel, and alloy pipe.

Getting the Right Pipe Alignment Tools for Your Project

The right selection of pipe alignment tools depends on pipe diameter, material, site conditions, and the standards you are working to. If you are unsure which combination of clamps, alignment tools, and marking equipment suits your project, our team is happy to help.

Pipe Stands and Clamps supplies the full range — from individual layout tools to complete fit-up packages — with UK stock availability and fast delivery on standard items.
